EQUIPMENT & READERS FOR MICROSTRUCTURES IN HOLOGRAMS & SECURITY LABELS

In the design of our hologram security labels, we work with microstructures in the nanometer range and integrate a wide variety of security features or hidden elements.

Special equipment & readers for microstructures in holograms & security labels with holograms are necessary to detect and read these structures. We have selected the following devices according to the best practicability and handiness and put them together for you.

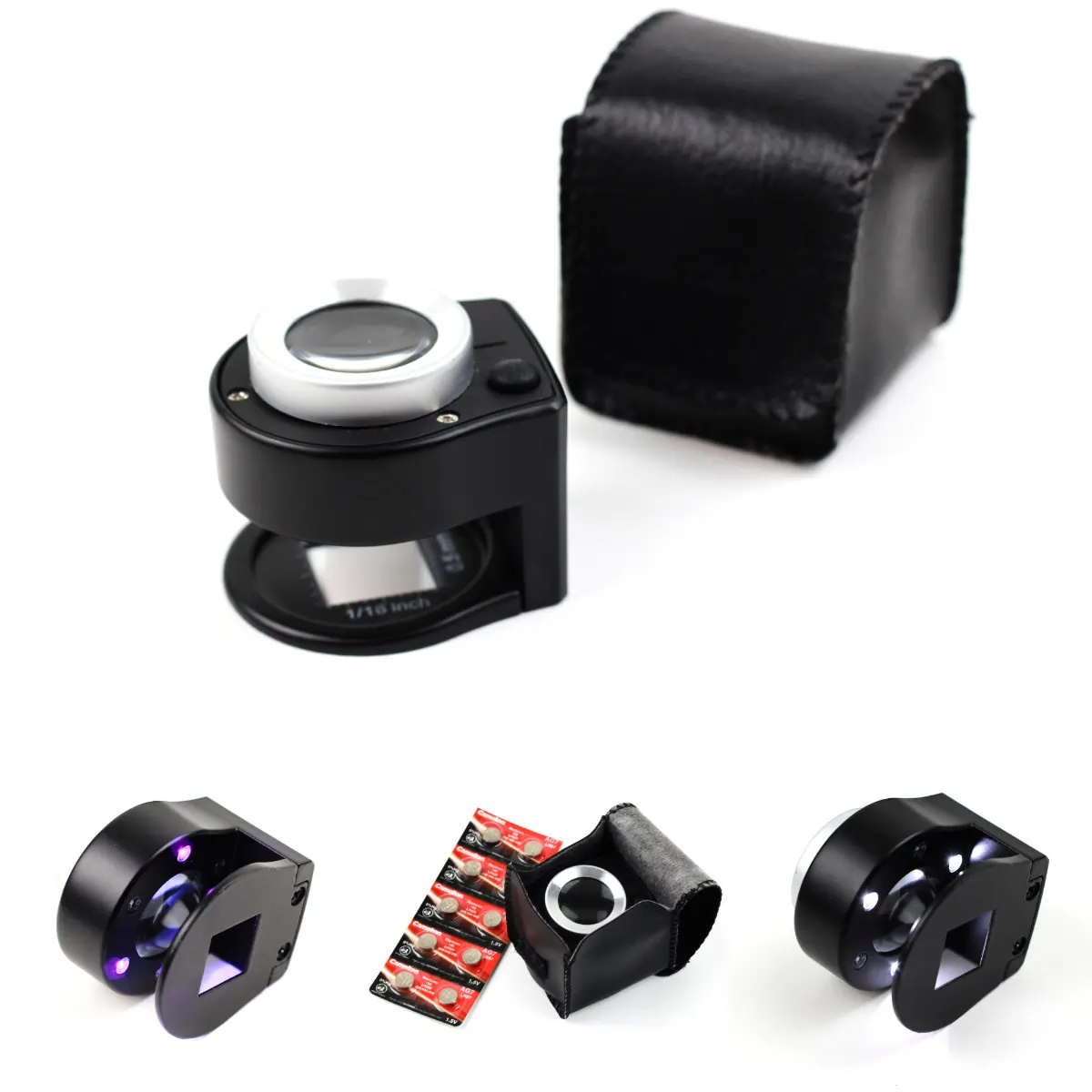

THREAD COUNTER / LUPE 30X with LED & UV

This handy thread counter is ideal for quick inspection of holographic optical security features, the details in the arrangement of the exposure cells, as well as for viewing microlettering up to a size of approx. 50µ and for checking UV features.

SPECIFICATIONS

Magnification approx. 30X
3x white light LED
3x UV LED
Delivery in leather bag
incl. 10 spare batteries

DIMENSIONS AND WEIGHT

Length 60mm
Width 53mm
Height 50mm
Lens diameter 26mm
Weight 180g. including battery

BATTERY

Voltage: 1.5V
Type: AG7 (LR57), 5x

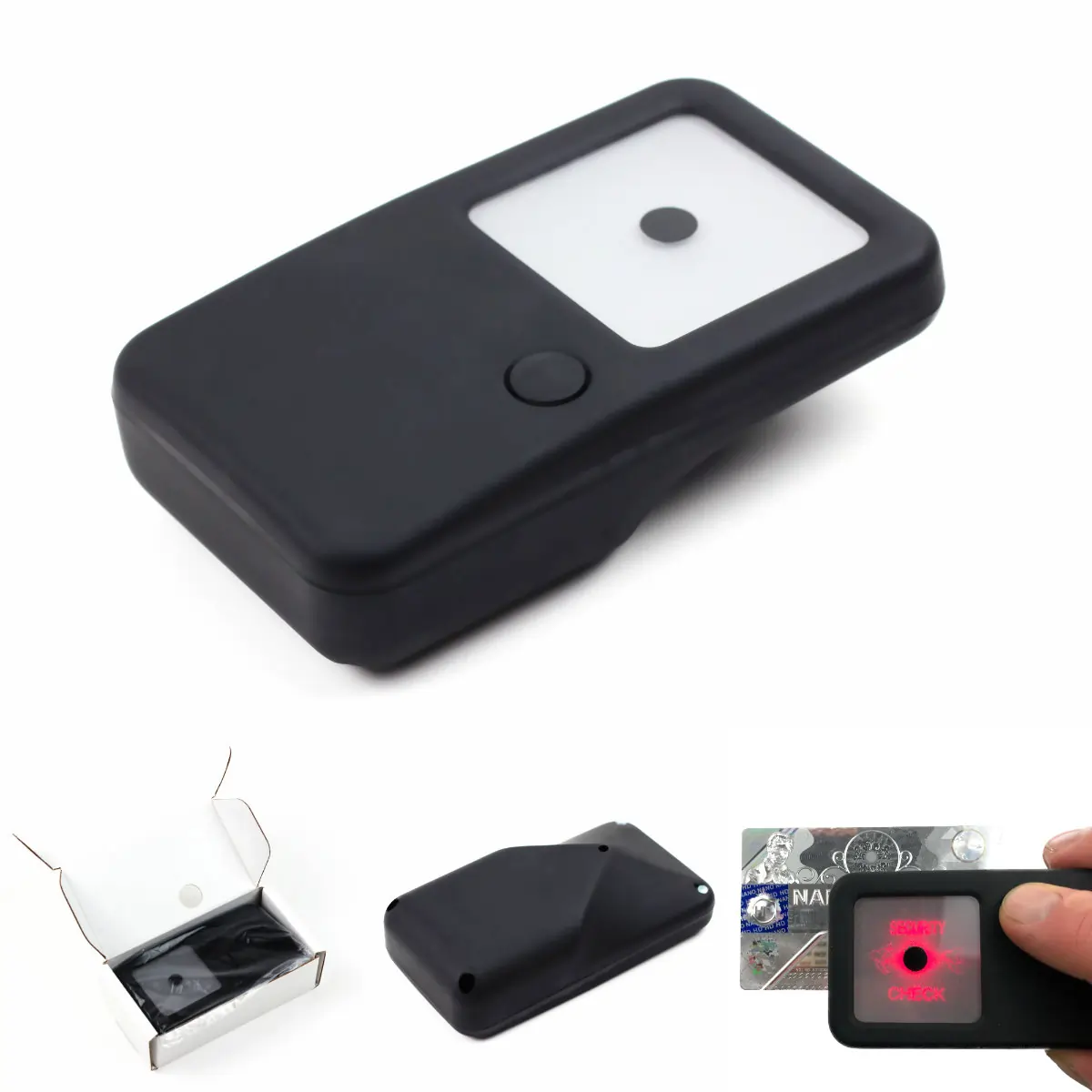

MULTI CLR READING DEVICE

The reader makes the control of holograms an objective procedure and eliminates possible misjudgments. This hidden feature verification reader is also very easy and convenient to use.

With this device, multi-level CLR images (CLR Multi) can be read out and visualized. The asymmetric microrelief of such elements must be produced with an accuracy of 20 nanometers. Such security features cannot be counterfeited with conventional optical technologies.

SPECIFICATIONS

Patented model no. 03
Visualization of CLR, as well as multi-CLR
simultaneous display of 1 and -1 (diffraction order)

DIMENSIONS AND WEIGHT

Length 89 mm
Width 50mm
Height 23mm
Screen size 35x35 mm
Weight <50 g. including battery

LASER DIODE PARAMETERS

Radiation wavelength: 0.65 micron
Diodes lifetime: more than 1000 hours
Power: 3-3.5 mW.

BATTERY

Voltage: 3V
Type: CR2

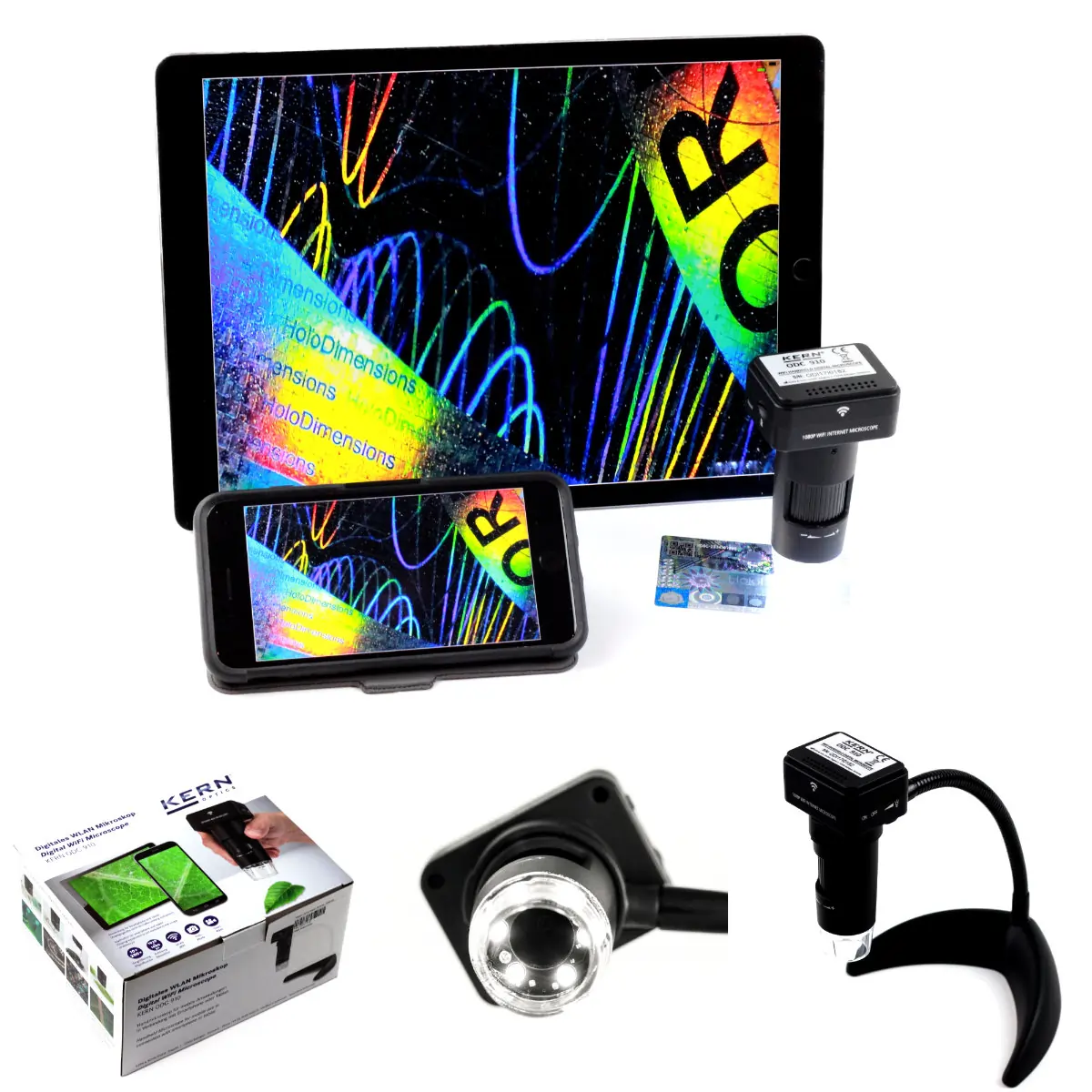

DIGITAL WLAN HANDMICROSCOPE ODC 910 with magnifications on the screens

DIGITAL WIFI HANDHELD MICROSCOPE ODC 910

The digital WLAN microscope for holograms is designed for quick and easy surface examination. The integrated illumination ensures an exact display of the holographic effects.

Ideally suited to reliably display microstructures in holograms & security labels in a clean image, with 200x magnification, on a smartphone or tablet .

SPECIFICATIONS

Magnification 10X and 200X
6x dimmable white light LED
WLAN compatible with IOS and ANDROID
The APP "Tiny Capture" is available for free in the Apple App Store and Google Play Store
Runs on up to 4 devices simultaneously
Storage of pictures and videos in the app possible or
Micro-SD card slot
Pictures in HD quality
Supplied with flexible tripod

DIMENSIONS AND WEIGHT

Depth 60mm
Width 44mm
Height 110mm
Weight 90g. including battery

BATTERY

integrated rechargeable battery
incl. 5V power adapter

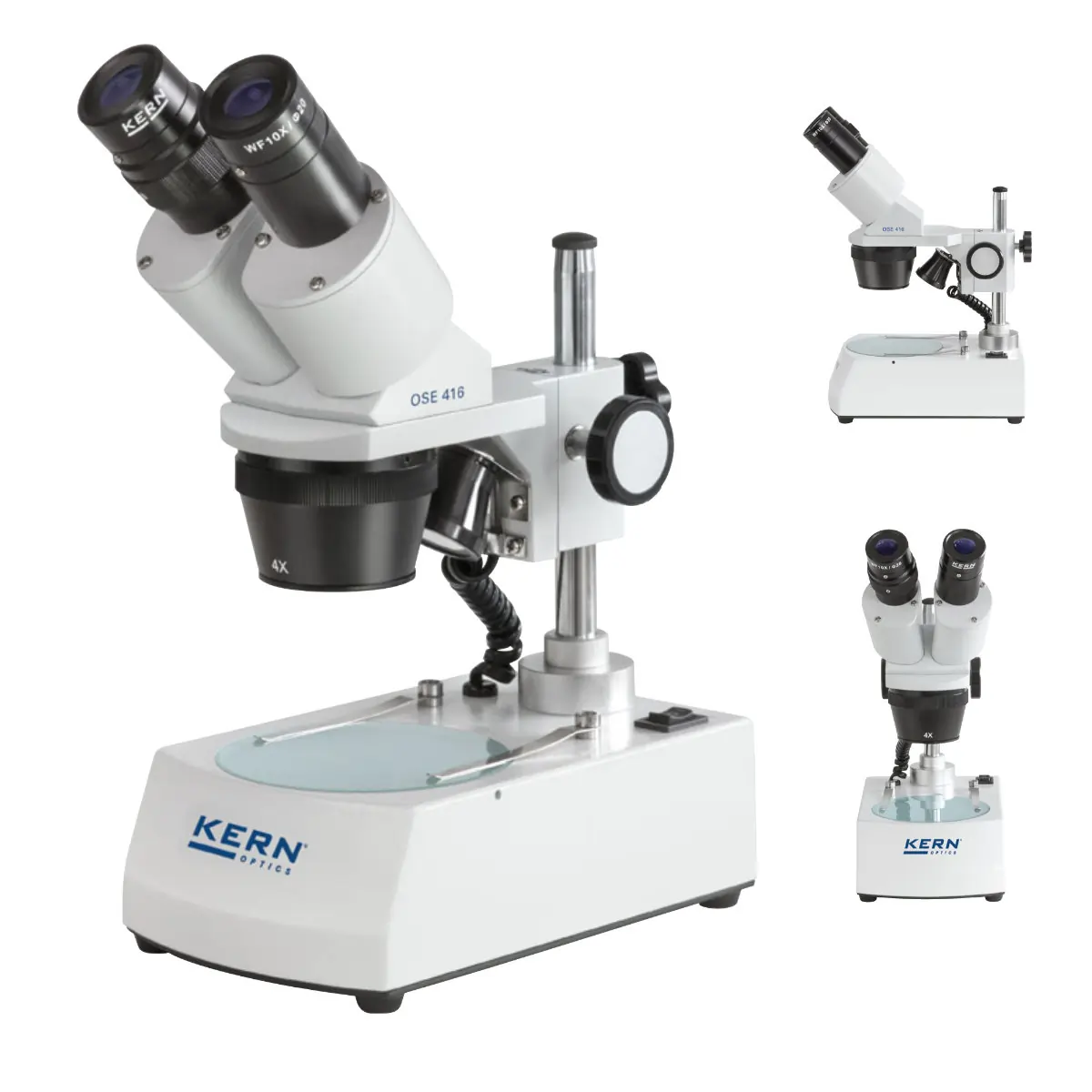

STEREOMICROSCOPE FOR HOLOGRAMS / CORE OSE-417

The KERN OSE-417 is a very robust, stable and easy to use stereo microscope and is ideal for quick and easy benchtopexamination of microstructures in holograms and security labels.

The LED transmitted and reflected illumination, which can be selected depending on the model, ensures optimal exposure of your object. It has very good optical properties, which enable sharp images over a large field of view.

SPECIFICATIONS

Optical system: Greenough optics
Magnifications / depending on eyepiece 20x / 30x / 40x / 60x / 80x
Tube inclined 45
Interpupillary distance: 55.0-75.0 mm
Dioptric compensation one-sided
available interchangeable objectives with predefined magnifications
Eyepieces fixed in the tube - protection against loss or damage
stable and precisely adjustable microscope mechanics
large selection of eyepieces as well as various additional external illumination units
Supplied with dust cover, soft eyecups and multilingual operating manual

DIMENSIONS AND WEIGHT

Depth 230mm
Width 128mm
Height 330mm
Weight 2,17kg

ACCESSORIES AND EYEPIECES

WF 10 / for 20x and 40x
WF 15 / for 30x and 60x
WF 20 / for 40x and 80x

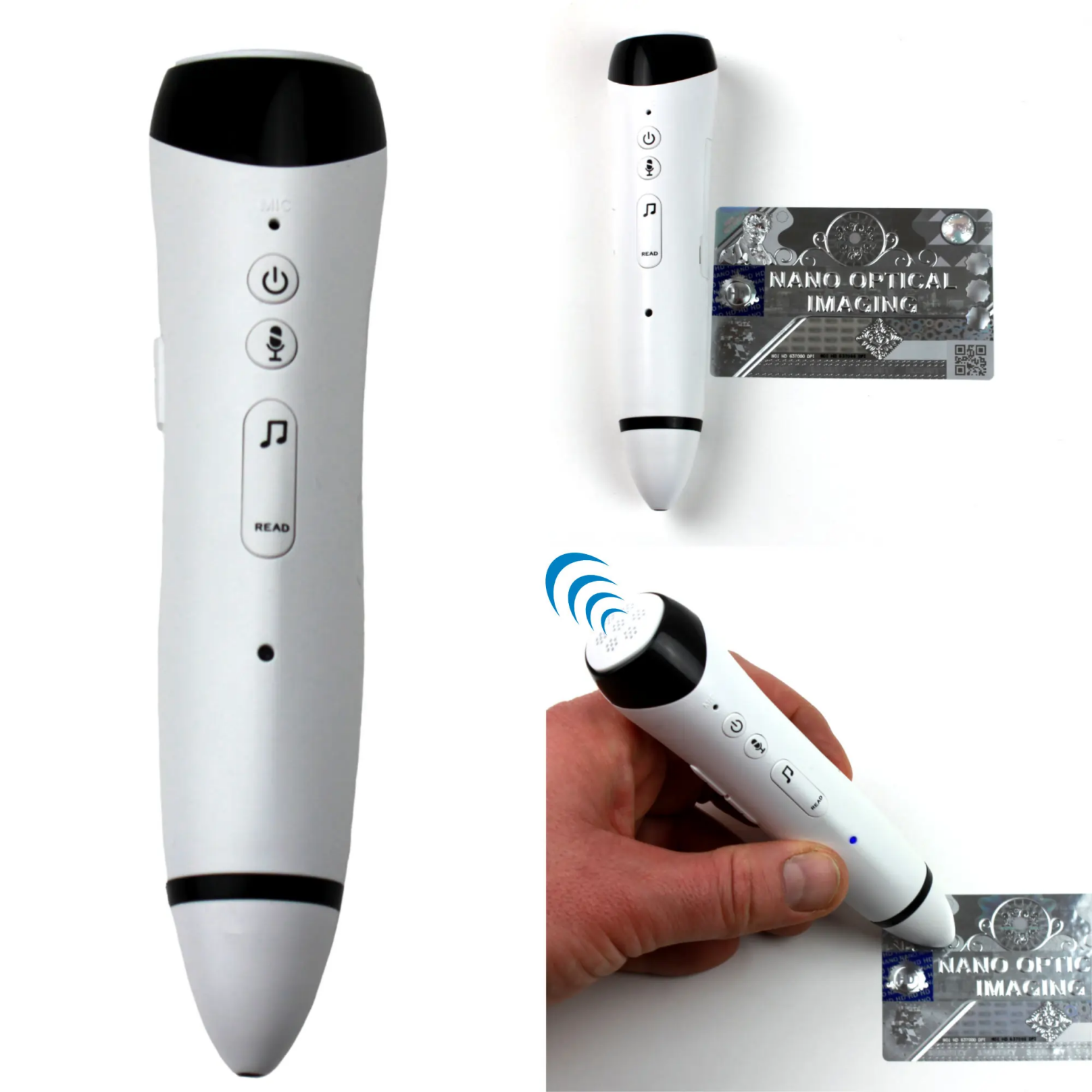

TALKING PEN / AUDIO AUTHENTICATION

The Audio Authentication Pen - also called Talking Pen - can be used to read hidden audio messages from the hologram. VIDEO - HIDDEN AUDIO CODE

The code embedded in the microstructures in the hologram is recognized by the optical sensor in the pen and the corresponding voice message is played back.
The security feature only works in combination with an individual hologram label and the reader specially programmed for this purpose. No other devices can be used. This makes the feature very effective in its use as a tamper-evident device.

SPECIFICATIONS

optical reader for audio codes
Recording device for audio messages

DIMENSIONS AND WEIGHT

Length 148mm
Width 34mm
Height 35mm
Weight 53g. including battery

CONNECTIONS

USB port
Headphone jack 3.5mm

KEY FUNCTIONS

On/OFF
Volume control
Recording
